Ascensores Excelsior ofrece una amplia variedad de soluciones versátiles para dar servicio a las personas con movilidad reducida como son los elevadores residenciales y las sillas o plataformas salvaescaleras. Desde el departamento de accesibilidad damos soluciones para comunidades de propietarios, viviendas particulares, edificios públicos, locales, centros comerciales, naves industriales, etc. eliminando las barreras arquitectónicas que impiden el acceso, a diferentes alturas, a personas con dificultad en su movilidad.
The most basic lift to get the best accessibility
The most basic model of lifts in the accessibility range. It is designed for people with reduced mobility on wheelchairs and assisting person.

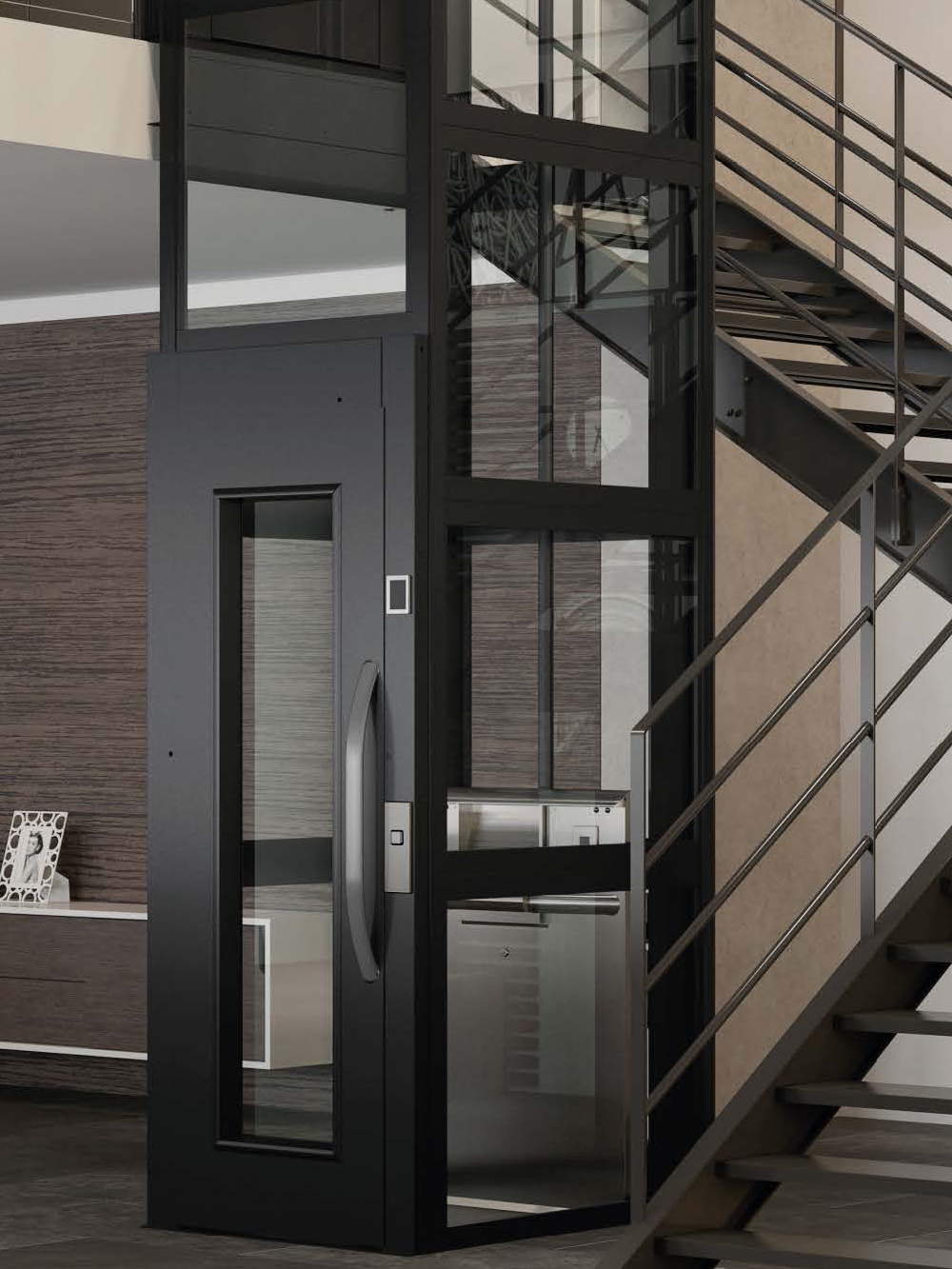

The lifting platform EXO-EXCEL is an alternative way to bridge the differences of height between the existing levels of stop defined with relative low travels.
It can be installed in existing buildings, in construction phase or in refurbishment and it is specially recommended in:
- Single-homes or detached for private usage.
- Public buildings for restricted usage. Specially designed for a moderated travel.
An excessive usage of the unit can provoke an accelerated deterioration in some components. The maintenance must be increased in this case to lengthen the life of the unit.
Following the rule with the annex X of European machinery guidelines 2006/42/CE and the harmonised rule: UNE EN 81-41 "Vertical lifting platforms for the usage by reduced mobility people".
Minimum pit
150 mm.
Single-phase
2,2 kW
Speed 0,15 m/s.
385 kg
TECHNICAL CHARACTERISTICS
• Maximum useful load: 385 kg.
• Speed: 0,15 m/s.
• Single-phase power: 2,2 kW. (3 CV).
• Power 230 V.
• Total travel 1:1: 3200 mm.
• Total travel 1:1: 12000 mm.
• Minimum pit: 150 mm.
• Minimum overhead space: 2650 mm.
• Swing landing door (optional: automatic swing).
• Door heights: 2000 mm.
• Door width: 800 mm.
• Cabin width: 1000 mm.
• Cabin surface: 1250 mm.
• Cabin floor artificial stone or non-slip.
• Standard cabin button.
OPTIONS
• Authomatic landing door.
• Autohomatic cabin door.
SAFETY SYSTEMS
• Emergency braking system.
• Electrical failures protections.
• Alarm in case of entrapment.
• Bidirectional communication.
