Ascensores Excelsior ofrece una amplia variedad de soluciones versátiles para dar servicio a las personas con movilidad reducida como son los elevadores residenciales y las sillas o plataformas salvaescaleras. Desde el departamento de accesibilidad damos soluciones para comunidades de propietarios, viviendas particulares, edificios públicos, locales, centros comerciales, naves industriales, etc. eliminando las barreras arquitectónicas que impiden el acceso, a diferentes alturas, a personas con dificultad en su movilidad.
Electrical lift with lifting system 1:1 without machine room prepared for reduced pits and overheads.
Electrical lift for vertical transport with cabin and counterweight. It works by traction pulley adhesion and machine can be in the inferior or superior part of the hoist . They are assembled in closed work hoists or metallic structure.
Adaptable in reduced spaces, even when it is not possible the standard measures for pits and overheads with minimum heights.
Minimum pit - 300 mm.
Maximum pit - 1400 mm.
Capacity
of 3 to 6 people.
Overhead space
2800 - 2900 mm.

TECHNICAL CHARACTERISTICS
• Capacity of 3 to 6 people.
• LOP and COP
• Control panel in the last floor.
• Maximum travel 15 m.
• Overhead space minimum 2800 mm-2900 mm. Depending on the capacity.
• Pit depth: minimum 300 mm - maximum 1400 mm.
• One or two entrances.
SAFETY SYSTEMS
• Emergency braking system.
• Overspeed control.
• Electrical failures protections.
• Alarm in case of entrapment.
• Bidirectional communication.
• Cabin anti-fall.

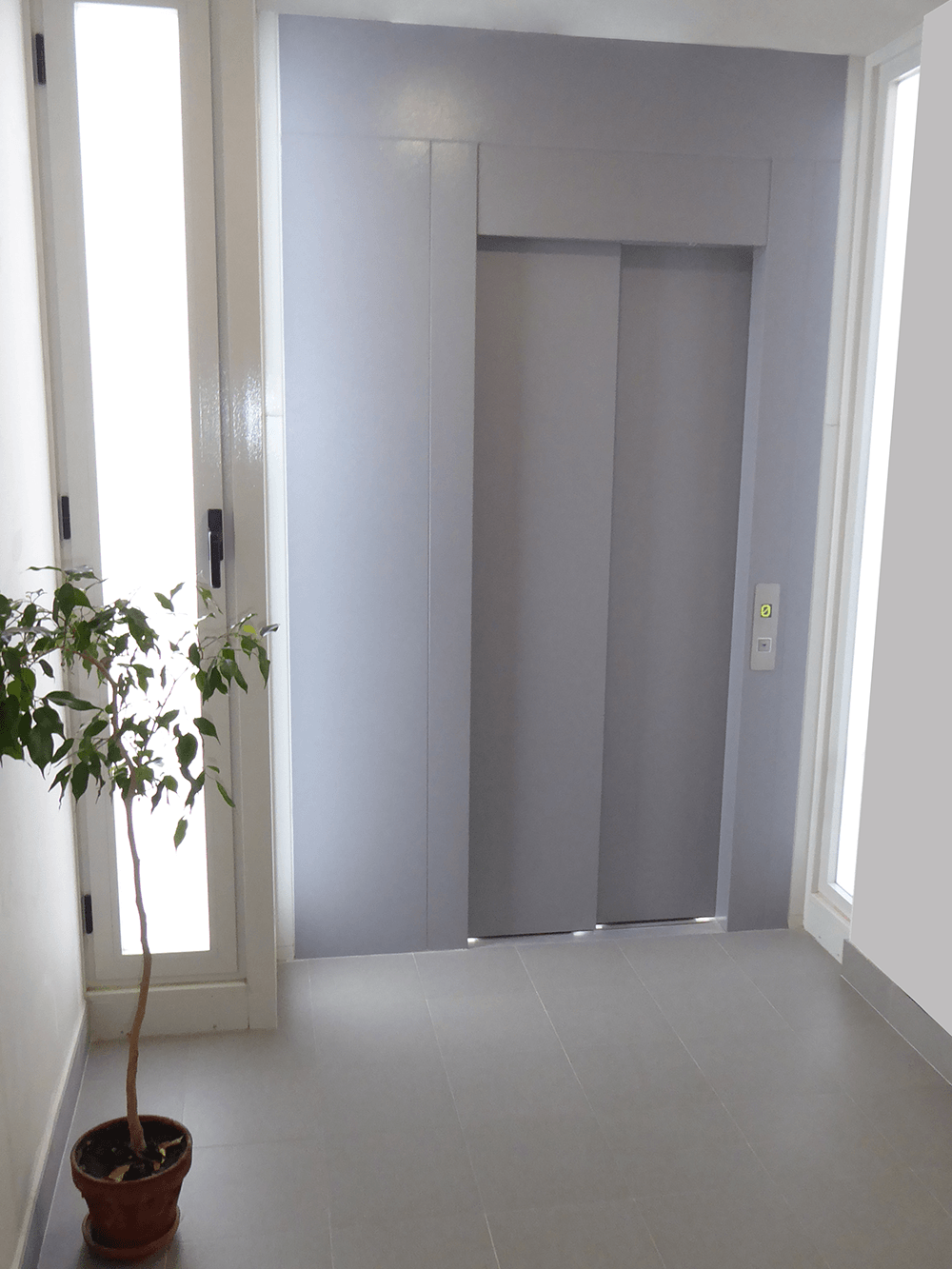

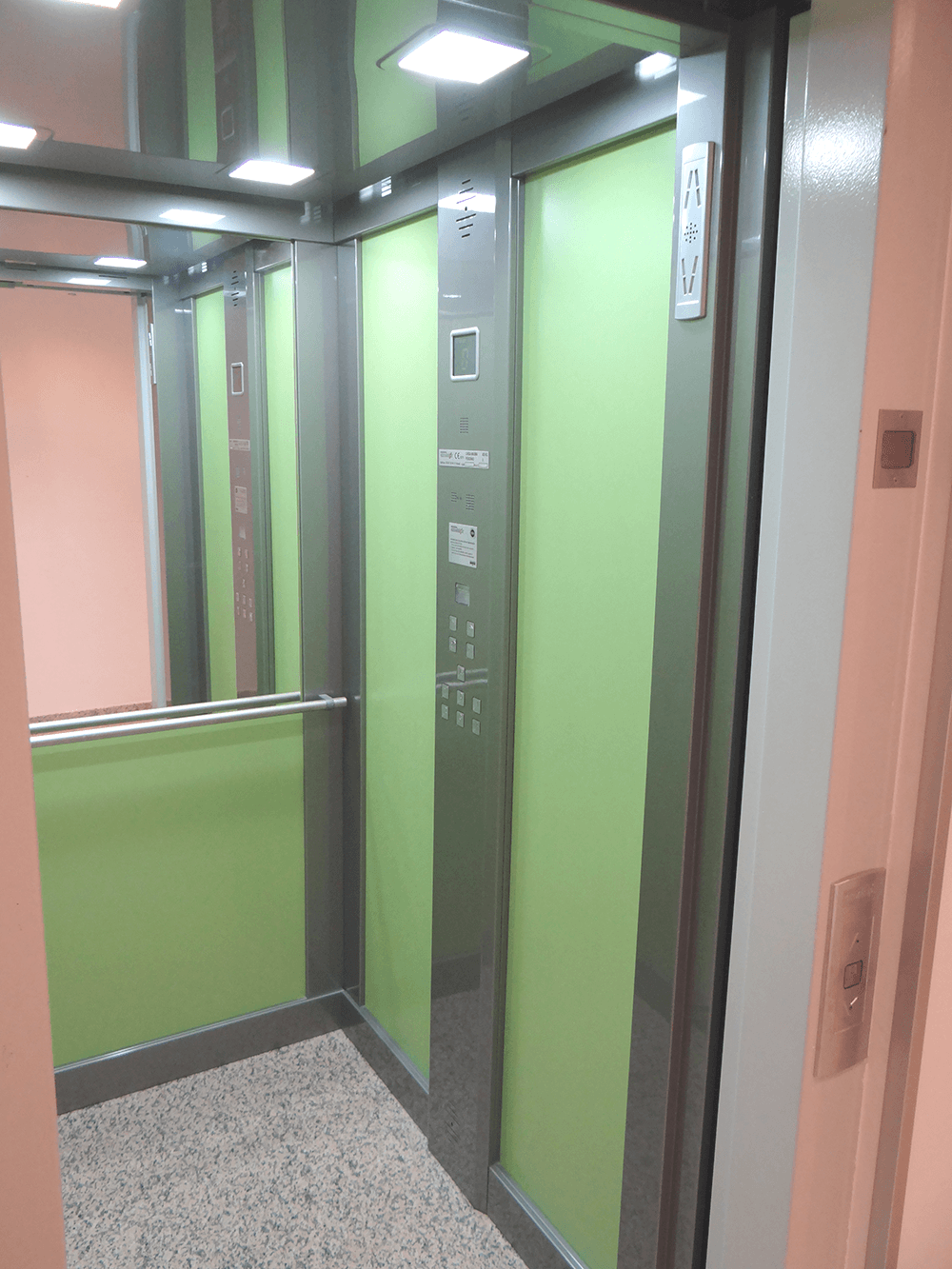

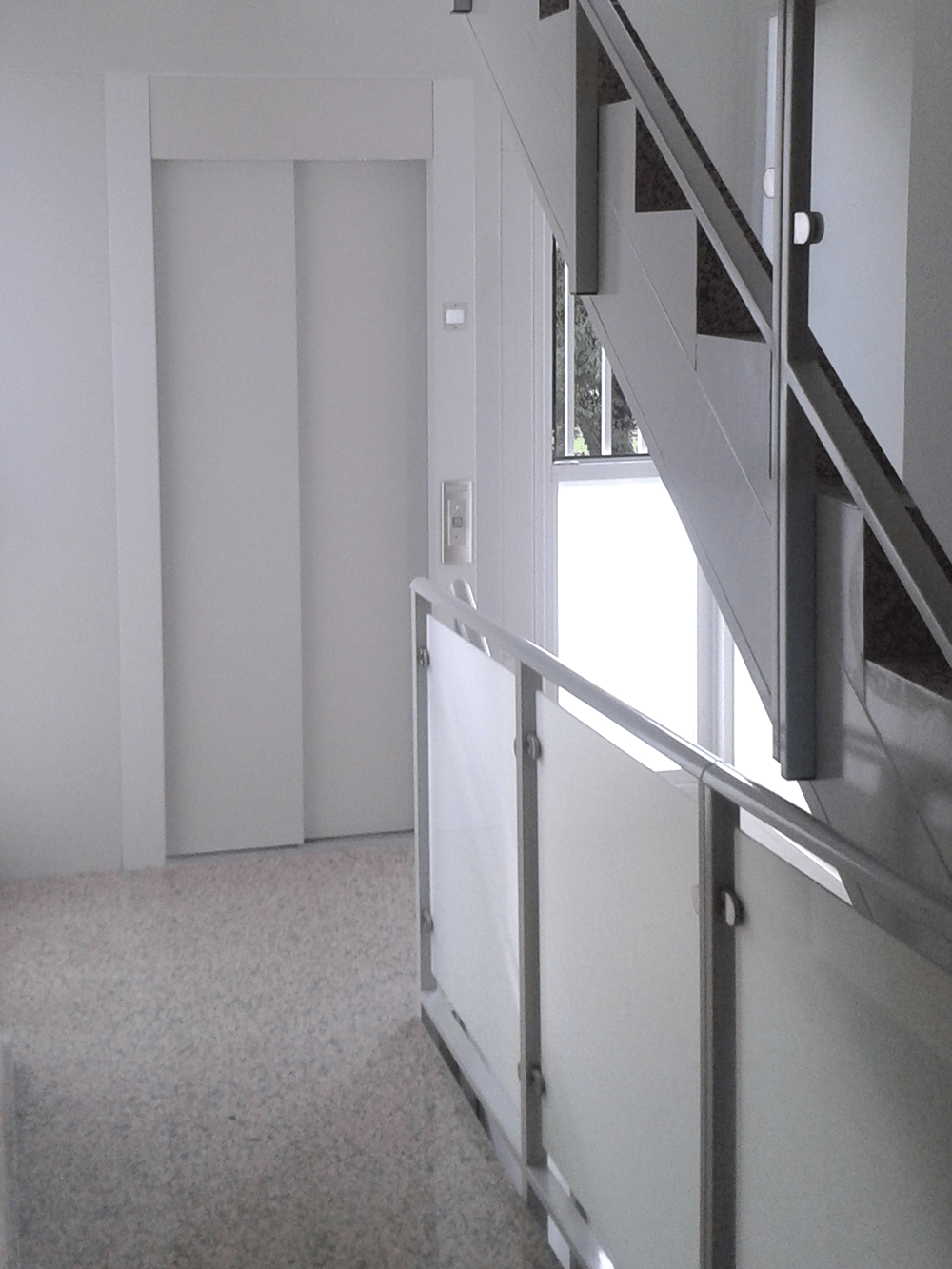

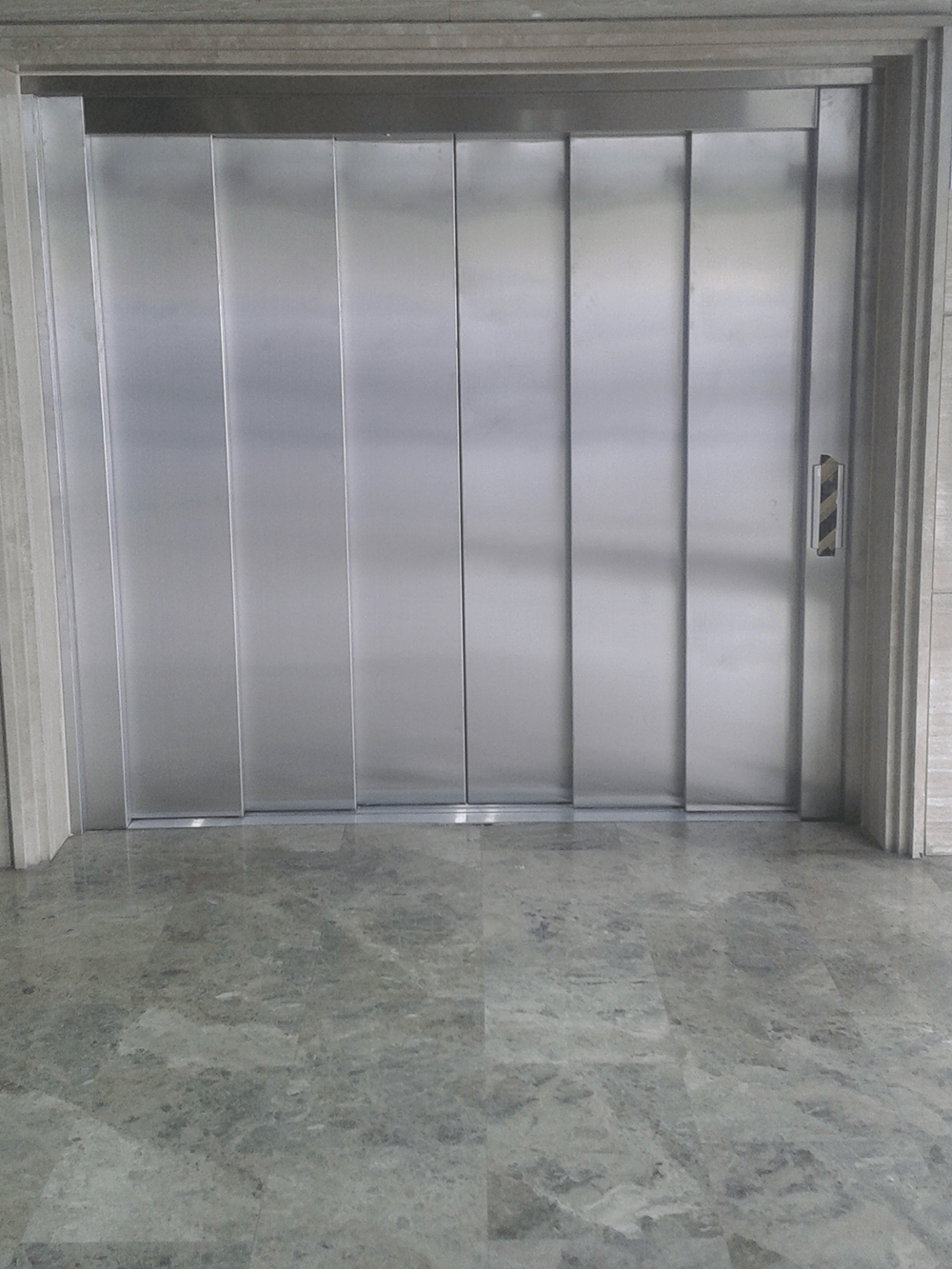

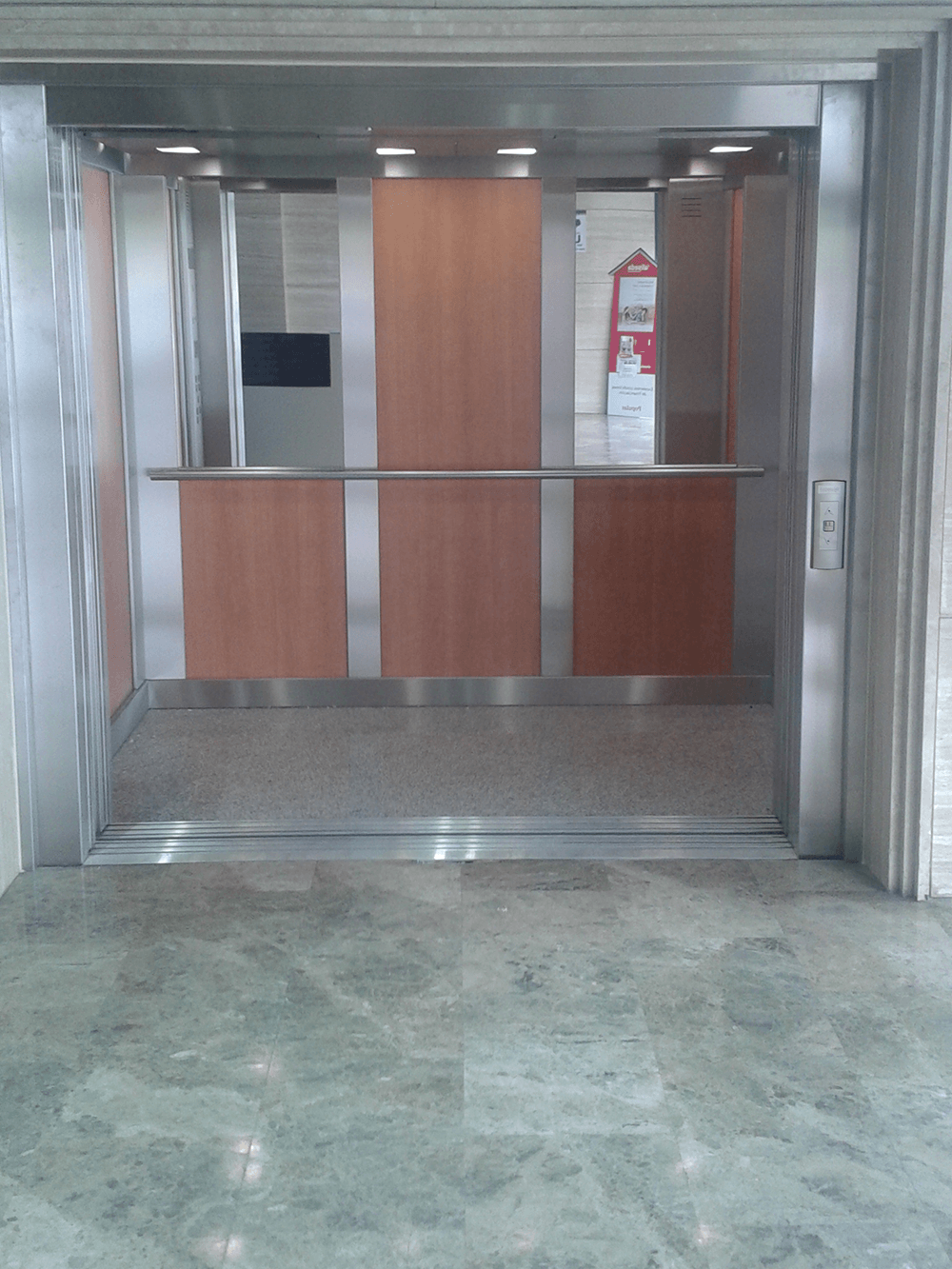

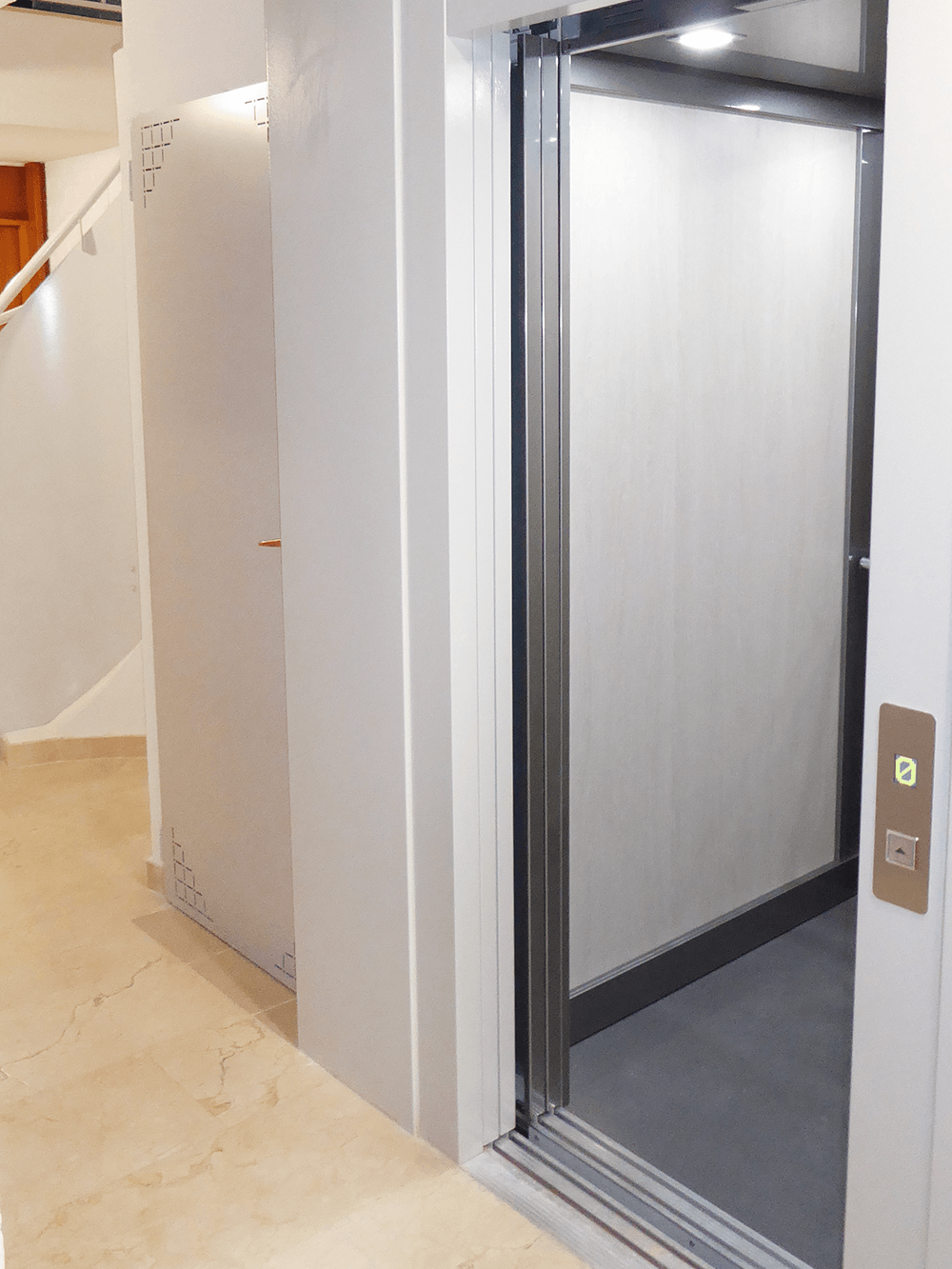

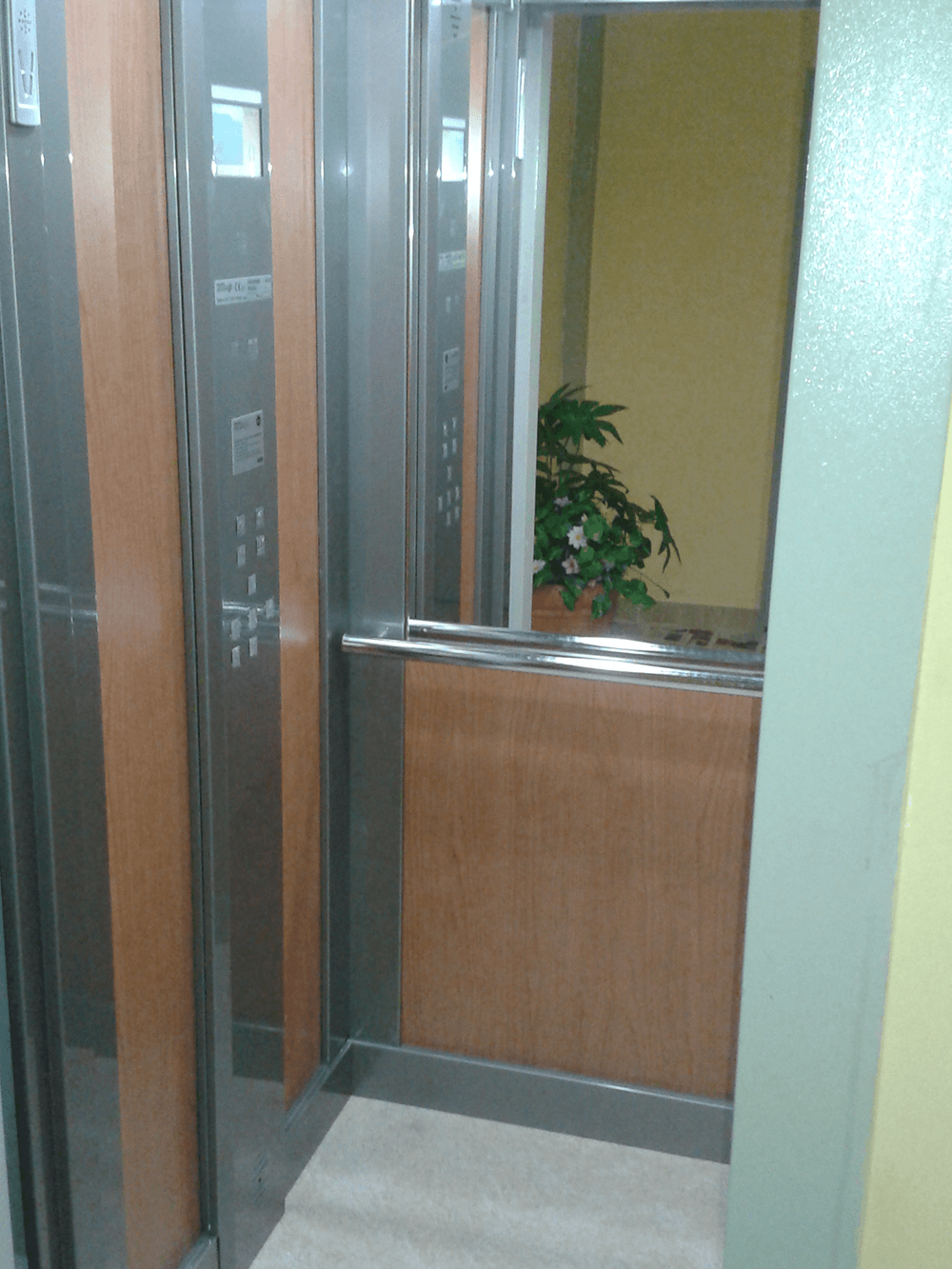

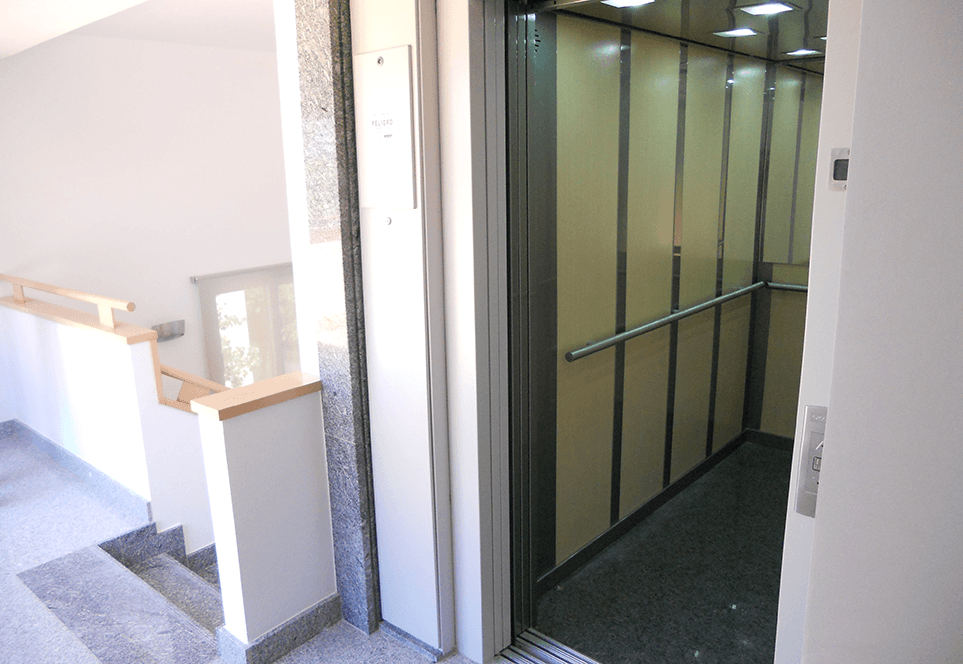

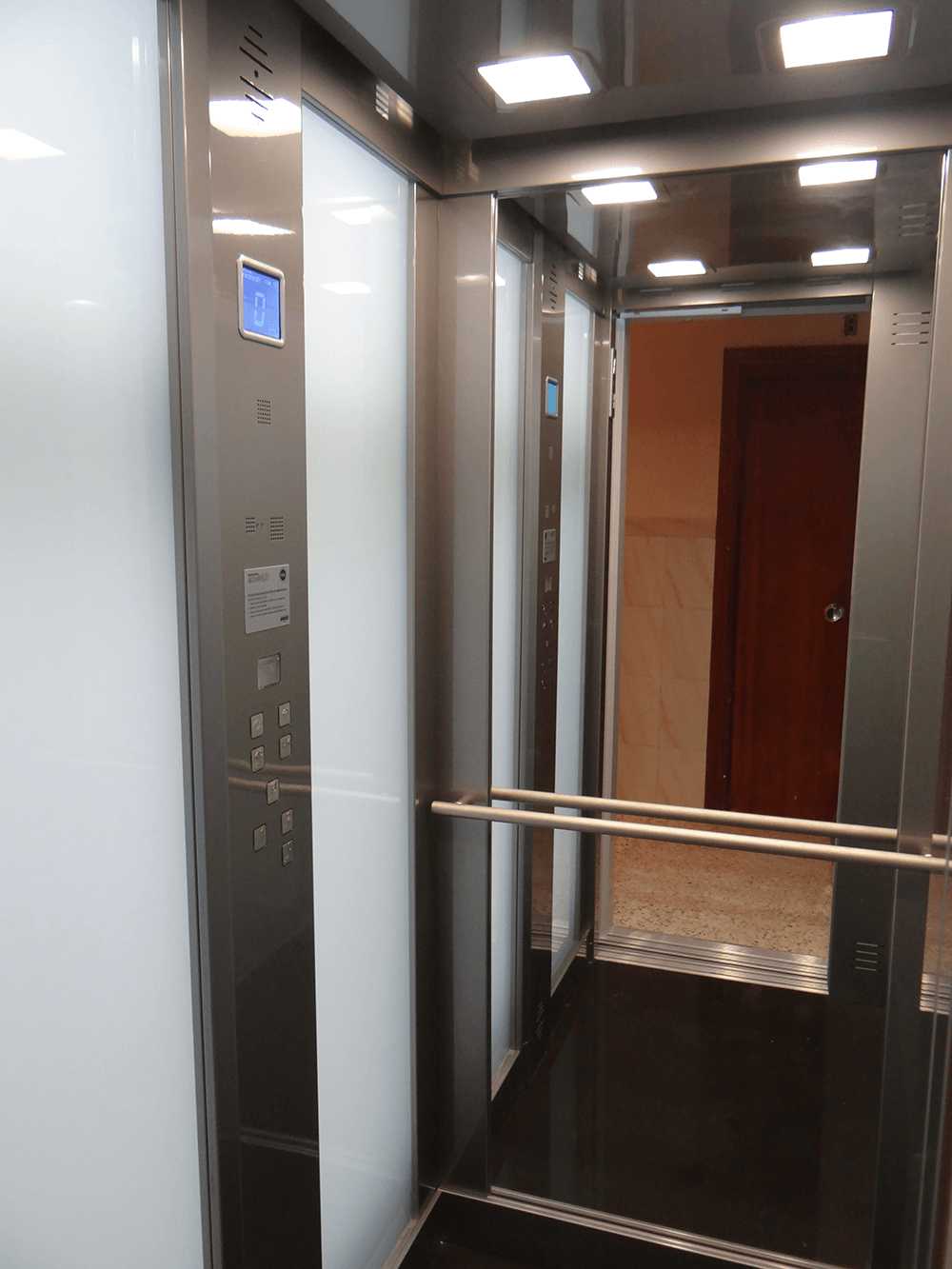

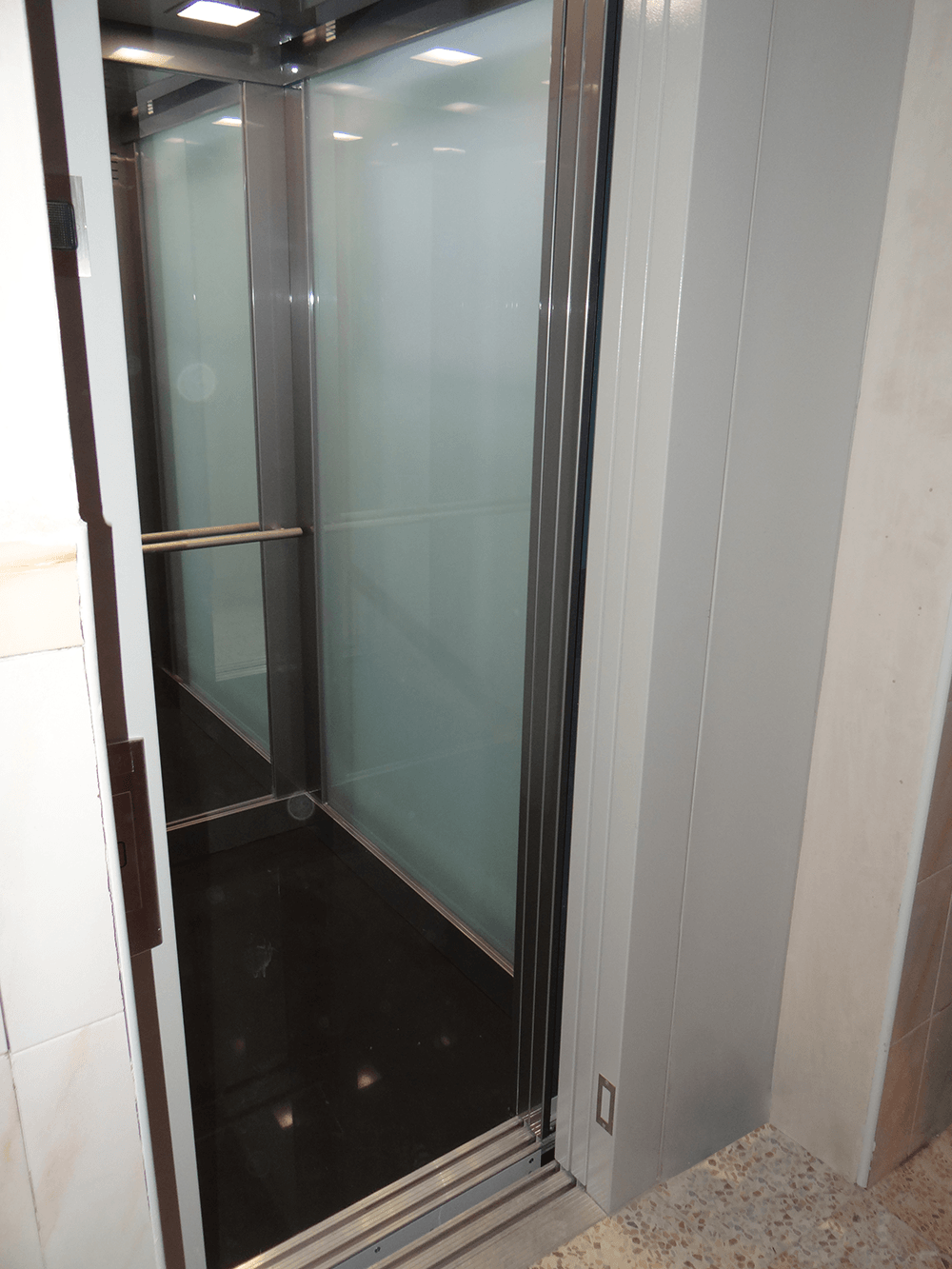

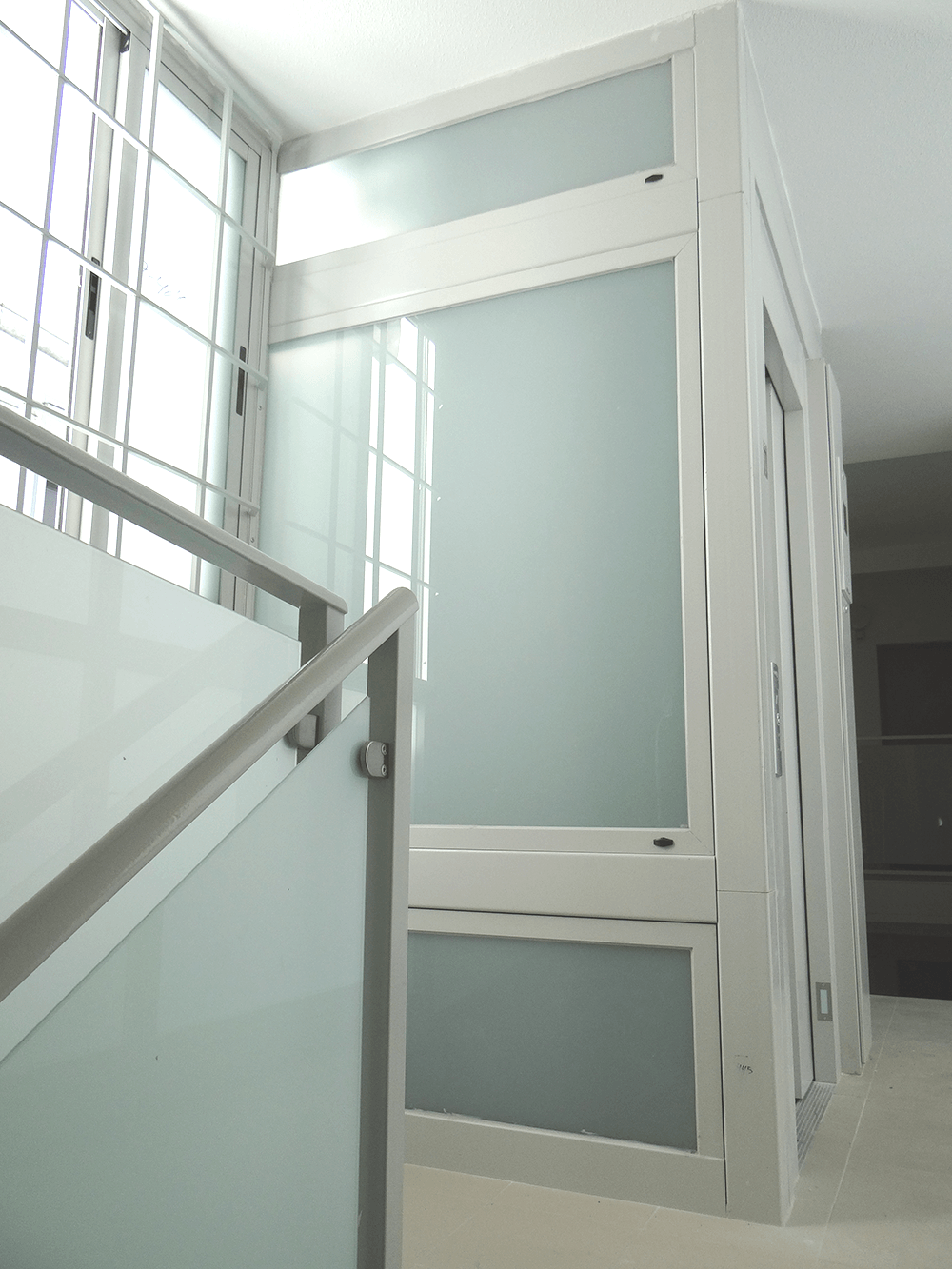

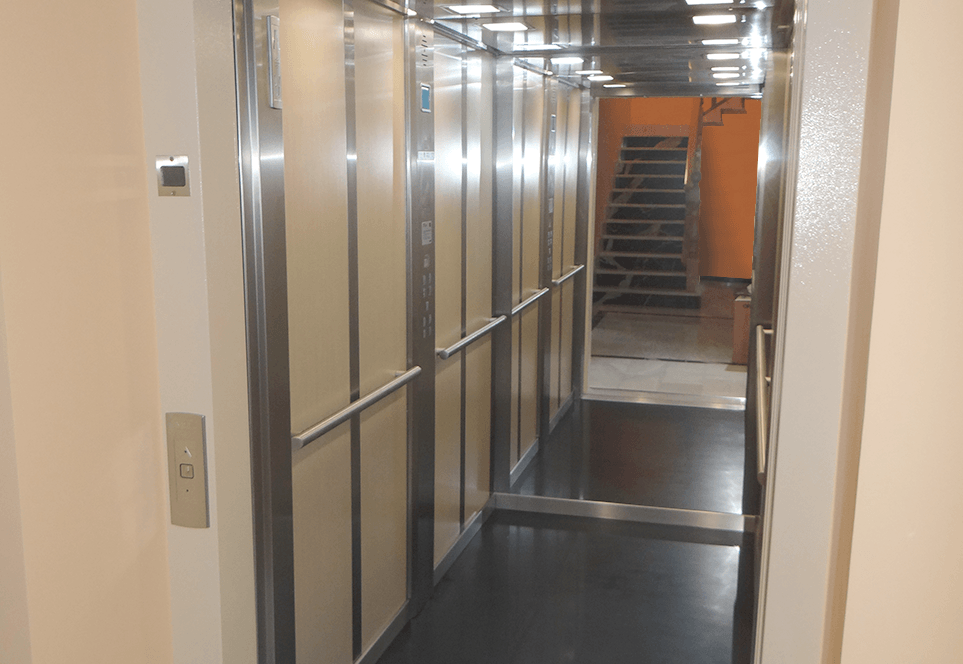

Some of our projects
