Vertical stairlifts platform model EXC-V
The vertical stairlifts platform EXC-V is designed for people with reduced mobility to be able to overcome architectural barriers existing in lifts.
It has a closing manufactured in accordance with DA DB-SUA/2 compulsory following since 12/03/2010 by royal-decree law 173/2010. "They must be constructed, installed and maintained in accordance with Machinery Directive 2006/42 / EC, EN 81-41, as well as applicable regulations". These platforms avoid diaphanous spaces under them to prevent risk of crushing.
This perimeter closing is available in two models: by structure and blower.
Following the rule with the annex VIII of European machinery guidelines 2006/42/CE and the harmonised rule: UNE EN 81-41 "Vertical lifting platforms for the usage by reduced mobility people".
Load capacity: 350 kg
Maximum travel 2,2 m
Speed: 0,15 m/s

TECHNICAL SPECIFICATIONS
• Load capacity: 350 kg.
• Speed: 0,15 m/s.
• Suspension 1:1 Telescopic or synchronised.
• Pit 100 mm without blower; 130 - 160 mm with blower.
• Maximum travel 2200 mm.
• Single-phase power 1,5 kW (2CV), 16A.
• Direct entrance, 90º and 180º.
• Cabin key.
• Remote control.
• Audible floor call.
• Hydraulic equipment with automatic heater.
• Powder colour painting RAL 7035.
OPTIONAL
• Automatic lateral arm and/or ramp.
• Folding seat.
• Anti vandalism seat.
SAFETY ELEMENTS
• Automatic rescuer with lack of power supply.
• Electric safety lockers.
• Photocell.
• Portable phone.
• Non-slip floor.
• Emergency light.
• Alarm in case of entrapment.
• Weighting device with light signal in cabin.
• Rupture valve.

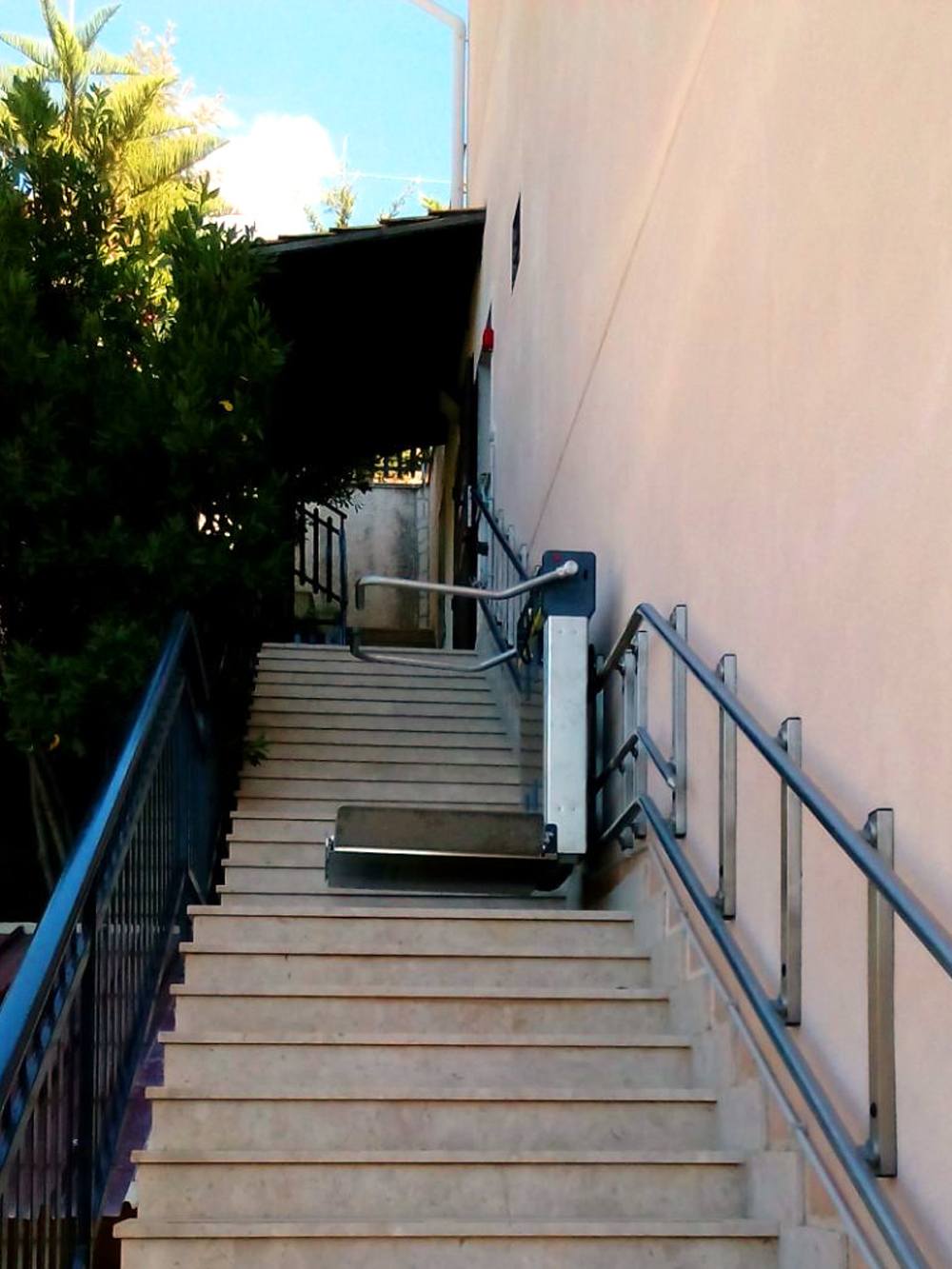

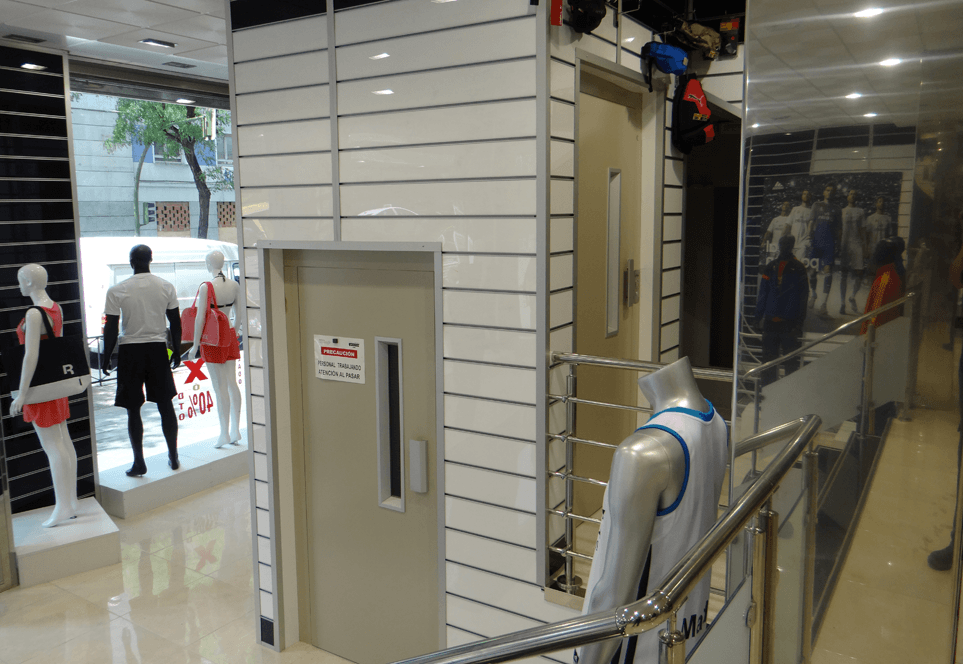

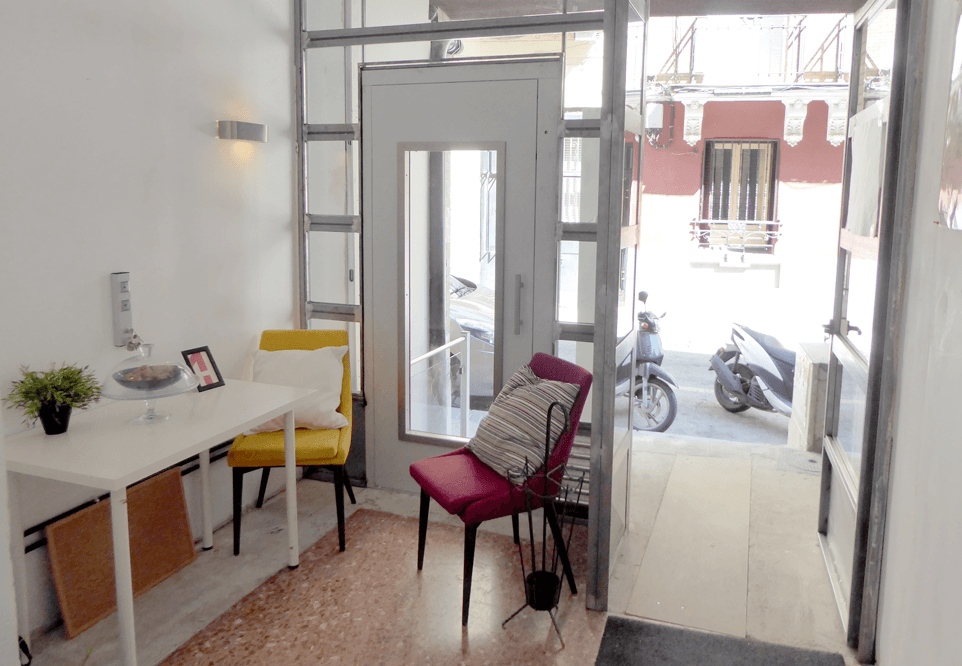

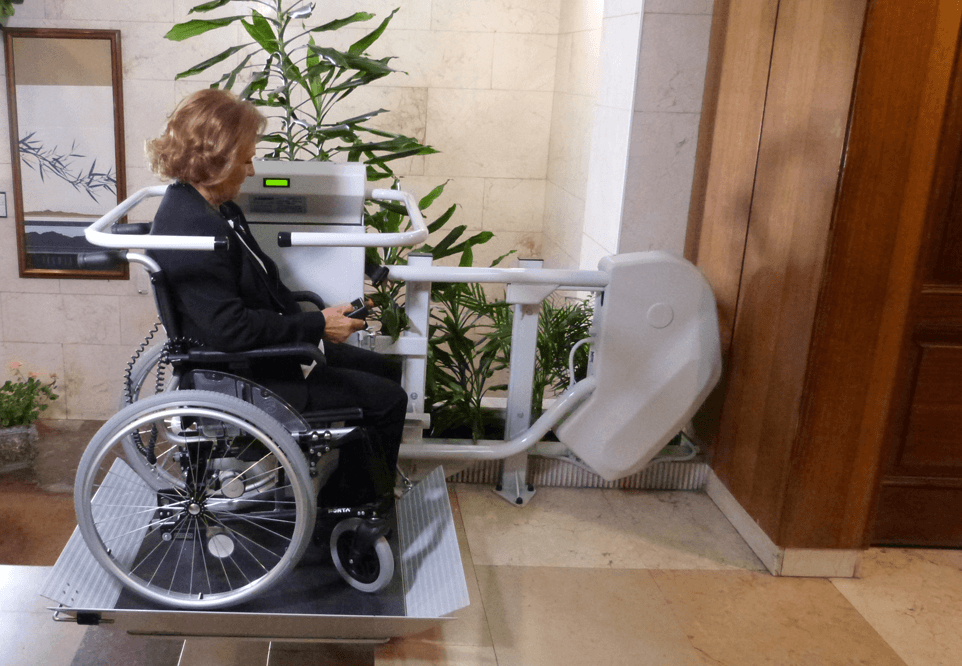

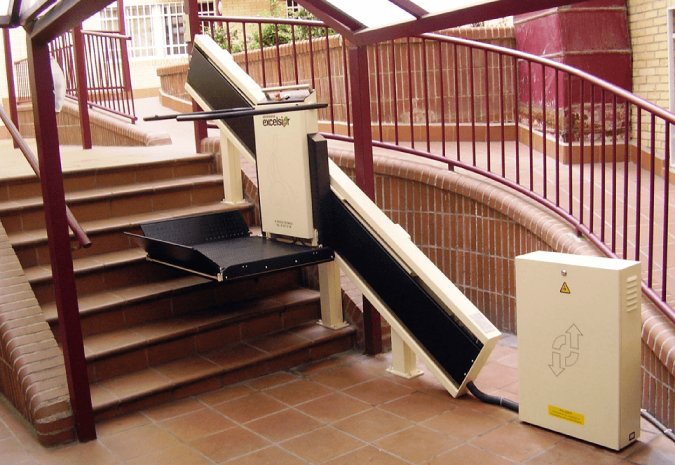

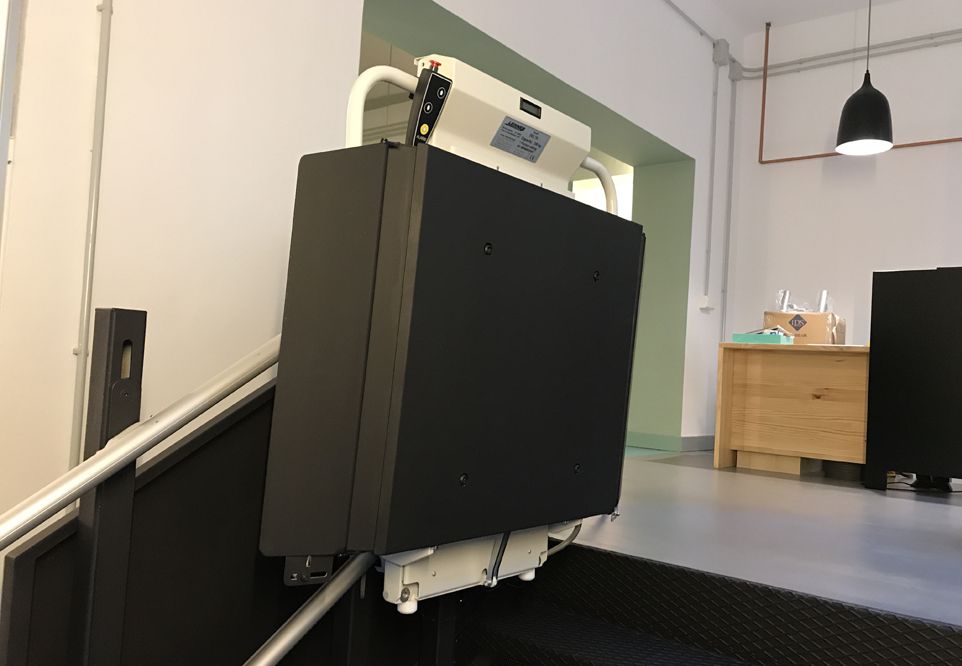

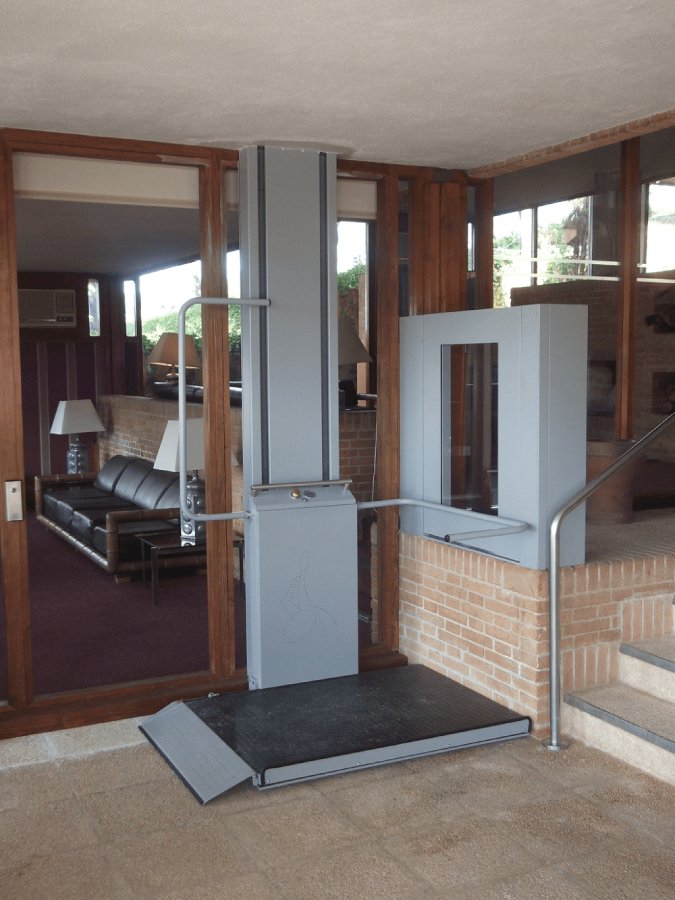

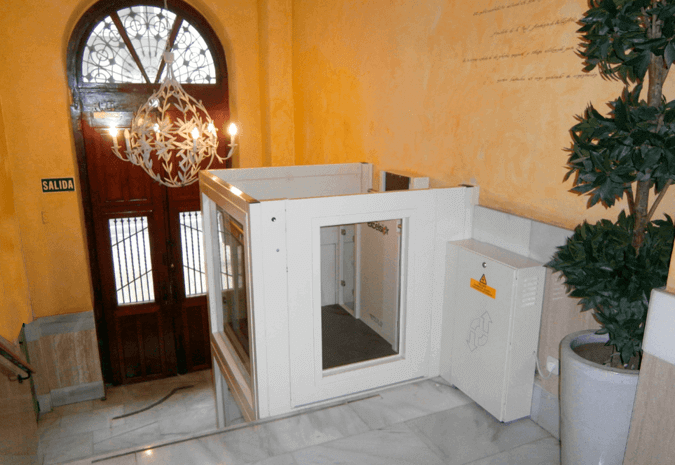

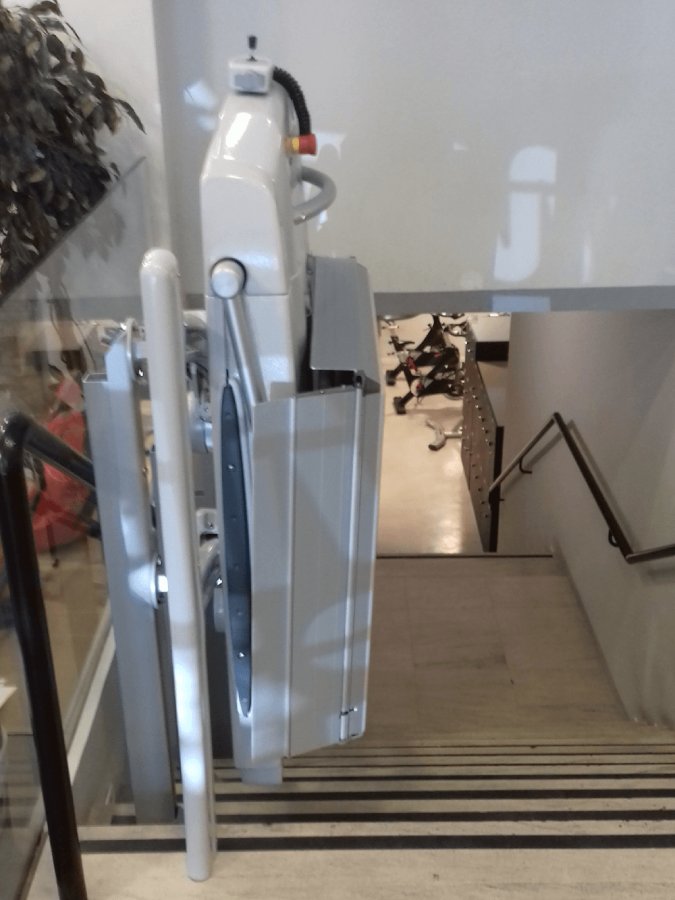

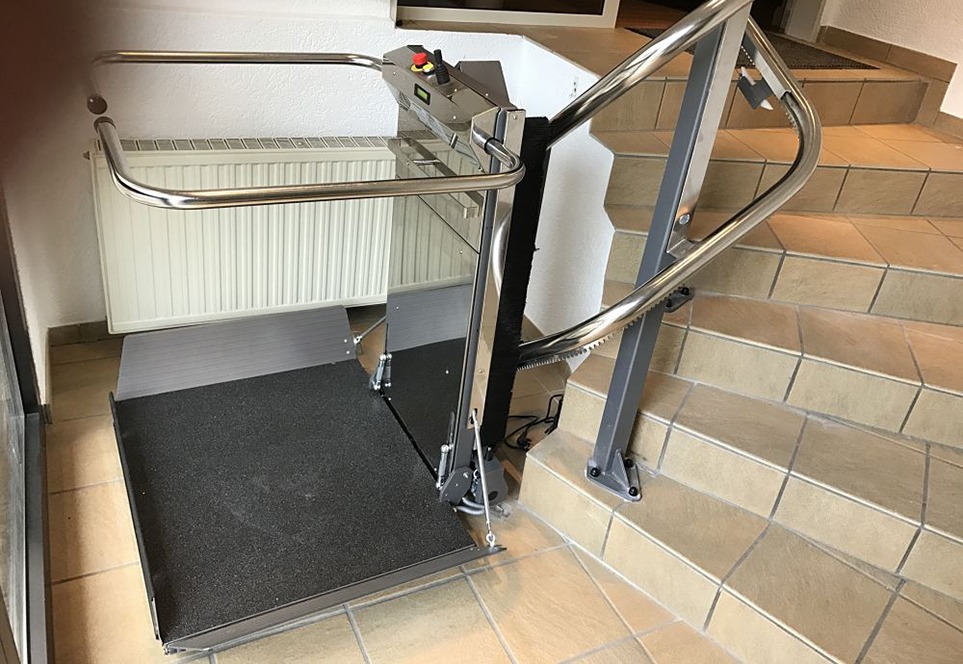

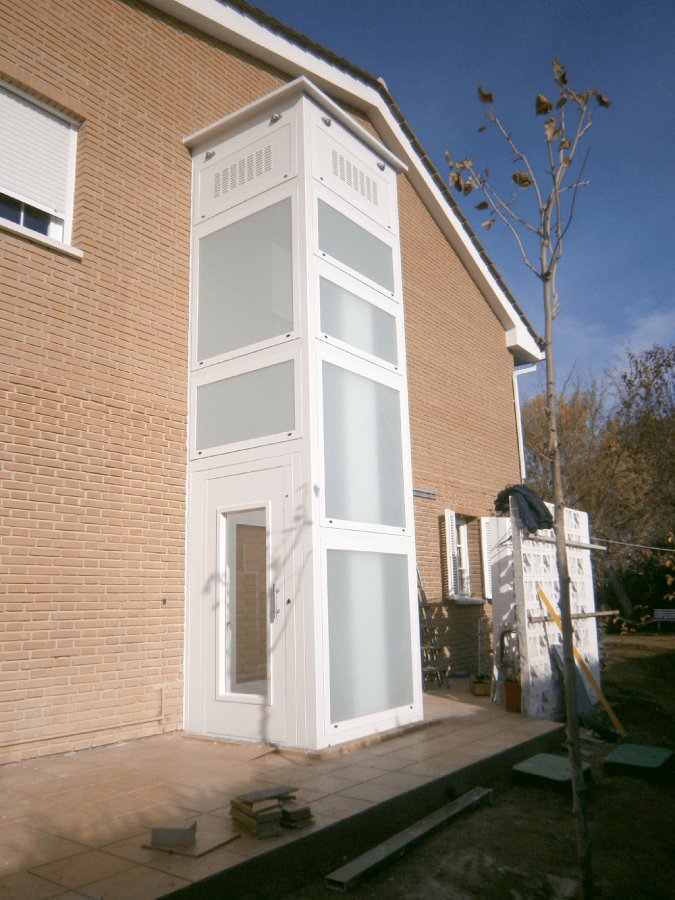

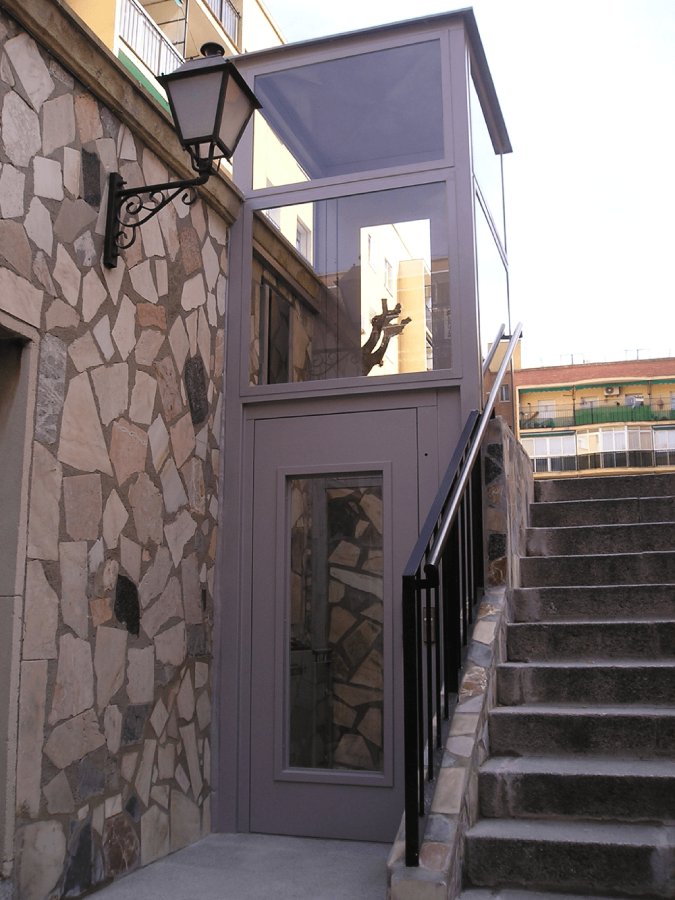

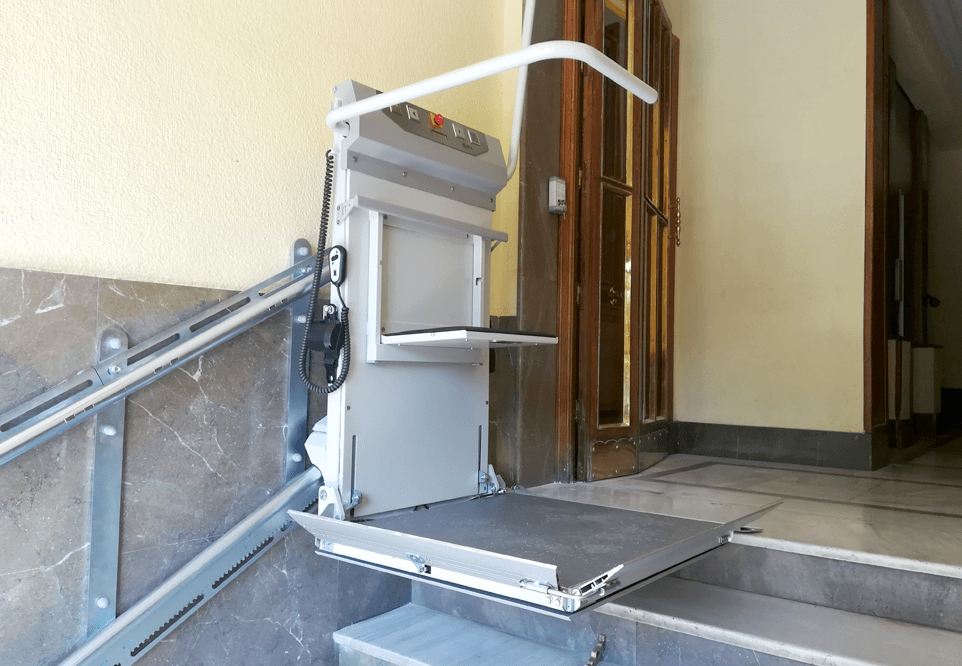

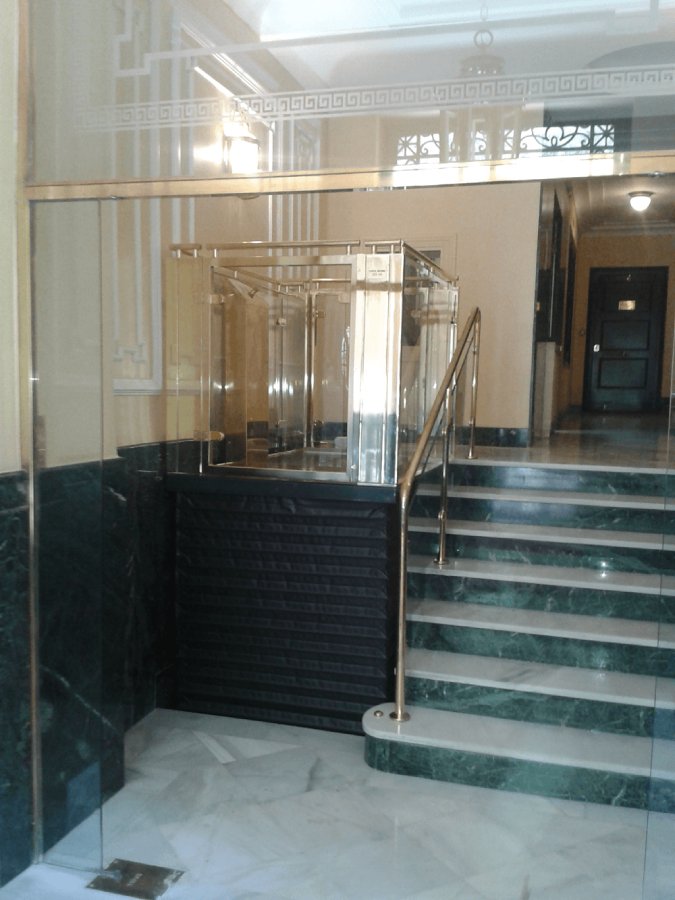

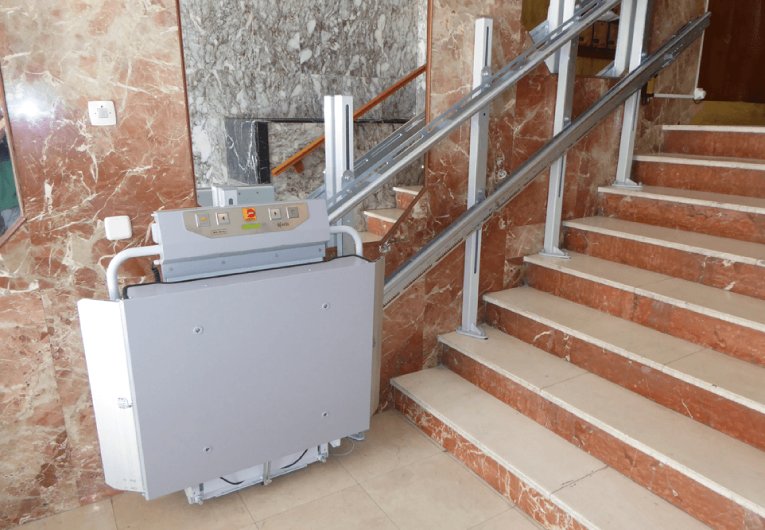

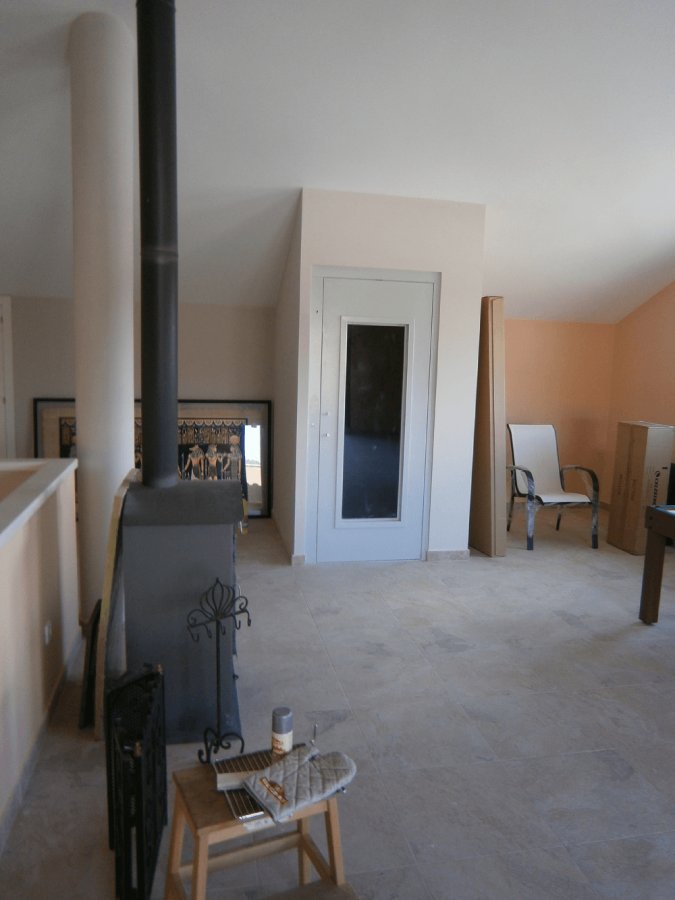

Some of our projects
